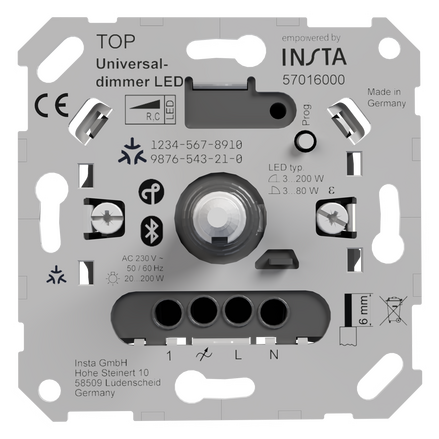

Matter universal LED dimmer
Referenznummer: 57016000
The Matter Universal LED Dimmer Module is designed for installation in electrical flush-mounted boxes. In addition to manual operation via the twist-and-push button on the device, it can also be controlled via the Matter standard. Thanks to the cross-manufacturer compatibility of the Matter standard, it is the ideal addition to your smart home system for lighting control in a modern smart home environment. By replacing the rotary dimmer cover, the dimmer can also be used in various switch ranges.
Product features
- Switching and dimming of lighting
- The device operates using leading-edge and trailing-edge control (for LEDs, halogen and incandescent bulbs)
- Automatic or manual selection of the dimming method suitable for the light source.
- Adjustable minimum and maximum brightness for improved adaptation to different light sources.
- Simple installation; works with most light bulbs without an additional neutral connection (2-wire operation)
- Silent dimming, soft start and protective mechanisms such as overload, overheating and interference protection ensure comfort and safety
- Shallow installation depth for flexible mounting
- Support for Matter via Thread: this allows the dimmer to be integrated into various Matter-compatible smart home systems
- Voice control (e.g. Google Assistant, Alexa, Siri, etc.) and app control are possible.
- Product compliant with the current Matter Standard 1.4
Specifications
| Rated voltage | AC 230 V ~ |
| Mains frequency | 50 / 60 Hz |
| Standby power | max. 0,35 W |
| Power loss | max. 2,3 W |
| Ambient temperature | -5 ... +45 °C |
| Storage / Transport temperature | -20 ... +70 °C |
| Relative humidity | 20 ... 70% (no numbing) |
| Power boosters | per 5 °C > 25 °C: −10% .. 20% |
| Fitting width | 30 mm |
Connected load |
|
| HV-halogen lamps | 20 ... 150 W |
| Electronic transformers | 20 ... 150 W |
| HV-LED lamps | 3 ... 200 W / 30 W |
| HV LED lamps Gating | 20 … 200 W / 100 W |
Total line length |
|
| Extension | max. 100 m |
| Load cable | max. 100 m |
Bluetooth |
|
| Radio frequency | 2,402 ... 2,480 Gz |
| Transmission power | typ. 10 mW, class 1 |
| Transmitting range | typ. 10 m |
| Communication protocol | BLE |
Thread |
|
| Radio frequency | 2,400 ... 2,480 GHz |
| Transmission capacity | typ. 10 mW |
| Communication protocol | Thread |
Matter |
|
| Number of smart home systems | max. 5 |
| Communication protocol | Matter |
