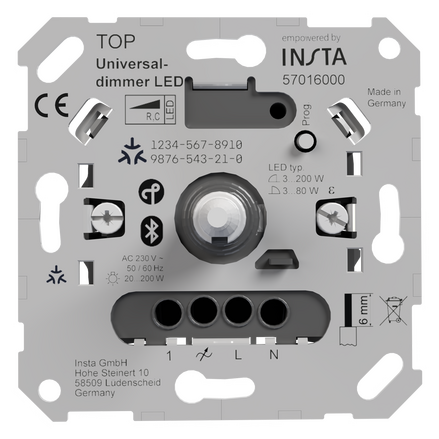

Matter universal LED dimmer
Referenznummer: 57016000
The Matter Universal LED Dimmer Module is designed for installation in electrical flush-mounted boxes. In addition to manual operation via the twist-and-push button on the device, it can also be controlled via the Matter standard. Thanks to the cross-manufacturer compatibility of the Matter standard, it is the ideal addition to your smart home system for lighting control in a modern smart home environment. By replacing the rotary dimmer cover, the dimmer can also be used in various switch ranges.
Product features
- Switching and dimming of lighting
- The device operates using leading-edge and trailing-edge control (for LEDs, halogen and incandescent bulbs)
- Automatic or manual selection of the dimming method suitable for the light source.
- Adjustable minimum and maximum brightness for improved adaptation to different light sources.
- Simple installation; works with most light bulbs without an additional neutral connection (2-wire operation)
- Silent dimming, soft start and protective mechanisms such as overload, overheating and interference protection ensure comfort and safety
- Shallow installation depth for flexible mounting
- Support for Matter via Thread: this allows the dimmer to be integrated into various Matter-compatible smart home systems
- Voice control (e.g. Google Assistant, Alexa, Siri, etc.) and app control are possible.
- Product compliant with the current Matter Standard 1.4
Specifications
| Rated voltage | DC 3 V |
| Ambient temperature | -5 ... 45 °C |
| Storage / Transport temperature | -5 ... 45 °C |
| Protection class | III |
| Protection class | IP20 |
| Width | 40 mm |
| Height | 40 mm |
| Depth | 11,7 mm |
| Battery type | CR 2430 |
Bluetooth |
|
| Radio frequency | 2,402 ... 2,480 Gz |
| Transmission power | typ. 10 mW, Klasse 1 |
| Transmitting range | typ. 10 m |
| Communication protocol | BLE |
Thread |
|
| Radio frequency | 2,400 ... 2,480 GHz |
| Transmission capacity | max. 10 dBm |
| Communication protocol | Thread |
Matter |
|
| Number of smart home systems | max. 5 |
| Communication protocol | Matter 1.1 |
