Conventional solutions by Insta
Conventional products as white label OEM products from Insta are characterised by their simplicity, flexibility and cost-effectiveness. The room temperature controllers, speed controllers and universal dimming inserts enable convenient control and monitoring of various building functions such as lighting, heating, ventilation and air conditioning.
- Proven technology
- Stable and durable solution
- Easy integration into existing switch designs possible
- Reliable automation without complex digital networking
- Improve energy efficiency
- Easy operation
- High investment security

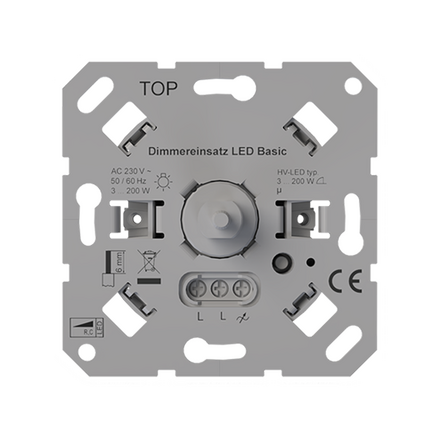

Dimmer insert LED basic
Referenznummer: 51118000
1Product features
- The device works according to the trailing edge phase control principle
- Bulb-preserving soft start.
- Minimum brightness can be set.
- Maximum brightness can be set
- Electronic short circuit protection.
- Electronic over-temperature protection.
- Operation without neutral conductor connection.
- Suitable for connection in changeover circuits
- Mounting in appliance box with dimensions according to DIN 49073
- Spreader claws as accessories
Specifications
| Rated voltage | AC 230 V, 50/60 Hz |
| Ambient temperature | 0°C ... +35°C |
| Protection class | IP20 |
| Depth | 24 mm |
Connected load |
|
| Incandescent lamps | 3 to 200 W |
| HV-halogen lamps | 3 to 200 W |
| HV LED lamps Section | typ. 3 to 200 W |
Total line length |
|
| Extension | max. 100 m |
| Load cable | max. 100 m |
