Dali-2 products from Insta
Dali-2 actuators, sensors, and gateways as white label OEM products from Insta are characterized by modern technology, high reliability, and easy integration, and have been an integral part of smart building automation for years. DALI-2 is the current standard for the digital control of lighting systems and enables precise, flexible, and energy-efficient lighting control. Insta's DALI-2 products impress with their high quality, user-friendly operation, and the ability to implement customized lighting solutions for a wide range of applications.
As a white label OEM manufacturer, we offer you the opportunity to offer high-quality and innovative Dali-2 products such as actuators, sensors, and gateways under your brand label, thereby expanding your portfolio in a sustainable manner.

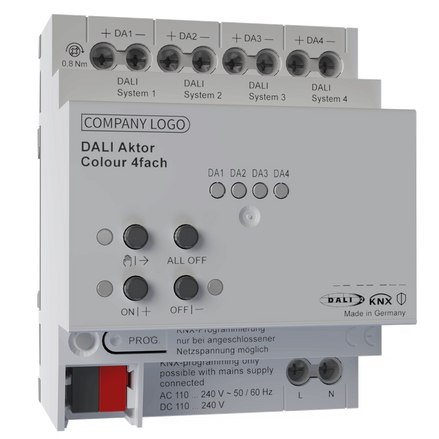

KNX DALI-2 Actuator 4gang Secure RMD
Referenznummer: 64547021
The actuator with integrated DALI power supply forms the interface between a KNX installation and a digital DALI (Digital Addressable Lighting Interface) lighting system. The actuator enables switching and dimming (broadcast) of DALI operating devices in up to four different DALI systems.
DALI operating devices can be controlled in terms of their brightness, colour temperature and colour (RGB(W)) Furthermore, the switching statuses of DALI-2 sensors (broadcast) can be made transparent for visualisation in KNX.
Product features
- DALI-2 certified
- Multi-master capable; DALI-2 sensors can be used as application controllers
- Each DALI(-2) system can consist of up to 40 DALI devices (operating devices or DALI-2 sensors (as application controllers))
- A maximum of 128 DALI devices can be connected to all four systems
- Broadcast control of each of the four DALI systems
- Setting the colour temperature or light colour (RGB, RGBW) for luminaires with DALI Device Type 8 in accordance with IEC 62386-209
- Short-circuit, overload and overvoltage protected
- Operating hours counter
- Automatic colour wheel sequence or brightness sequence
- Suitable for operation of emergency lighting systems with DC voltage
- Manual operation of DALI systems
- Restraint or disabling functions
- Collective feedback
- Central switching and dimming function
- Disabling function for every DALI system
- Separate switch-on and switch-off delay for each DALI system
- Staircase lighting timer with run-on time
- Standby switch-off of the DALI devices
- KNX Data Secure product
- Updateable with Insta ETS Service App
Specifications
| Rated voltage | AC 110 ... 240 V ~ |
| Mains frequency | 50 / 60 Hz |
| Power loss | max. 3 W |
| Ambient temperature | -5 ... +45 °C |
| Storage / Transport temperature | -25 ... +70 °C |
| Fitting width | 72 mm / 4 TE |
Control output |
|
| Output current | typ. 64 mA, max. 250 mA kurzzeit |
KNX |
|
| KNX Medium | TP 256 |
| Rated voltage KNX | DC 28 ... 31 V SELV |
| Current consumption KNX | 3 ... 4 mA |
| Connection type for bus | Anschlussklemme |
DALI |
|
| Rated voltage DALI | DC 15,2 V (typ.) |
| Output current | typ. 6 mA, max. 250 mA kurzzeit |
| DALI transmission rate | 1,2 kbit/s |
| DALI protocol | EN 62386 |
