Dali-2 products from Insta
Dali-2 actuators, sensors, and gateways as white label OEM products from Insta are characterized by modern technology, high reliability, and easy integration, and have been an integral part of smart building automation for years. DALI-2 is the current standard for the digital control of lighting systems and enables precise, flexible, and energy-efficient lighting control. Insta's DALI-2 products impress with their high quality, user-friendly operation, and the ability to implement customized lighting solutions for a wide range of applications.
As a white label OEM manufacturer, we offer you the opportunity to offer high-quality and innovative Dali-2 products such as actuators, sensors, and gateways under your brand label, thereby expanding your portfolio in a sustainable manner.

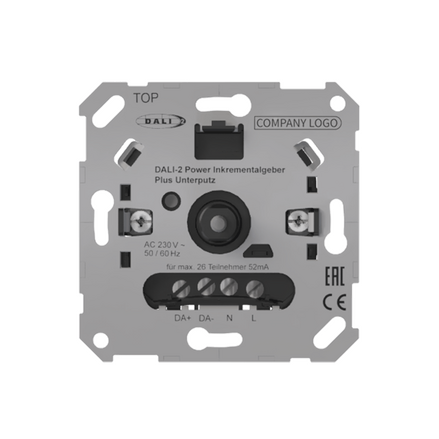

DALI-2 Power incremental encoder plus FM
Referenznummer: 51163000
The DALI-2 Power incremental encoder is a DALI-2 multi-master control device and supplies the control current for up to 26 DALI operating devices. It is used to set the brightness of luminaires with a DALI-2 interface and to set the colour temperature for DALI operating devices of device type 8 (Tunable White). In normal operating mode as a DALI-2 Multi-Master Application Controller, the function always applies to all connected devices (broadcast). With the individual DALI-2 parameterisation, it is possible to configure the device for DALI group control (DALI groups 1-16) and operate up to four devices in parallel to control the ballasts from different locations. Configured as a DALI-2 input device (in this case the DALI-2 application controller is deactivated), it is possible to connect the product to a building automation gateway (e.g. KNX DALI-2 Gateway) to indirectly control DALI operating devices or devices as part of the connected building automation system.
Product features
- Certified DALI-2 control device to IEC62386-101, 103, 301, 302
- DALI-2 Rotary dimmer insert flush-mounted with integrated power supply unit: DALI-2 application controller with integrated bus power supply for up to 26 DALI devices
- Parallel switching of up to 4 DALI-2 rotary dimmer inserts Flush-mounted with integrated power supply unit, with the option of supplying up to 104 DALI devices
- DALI-2 flush-mounted rotary dimmer insert with integrated power supply unit: DALI-2 Application Controller without bus power supply requires an external DALI power supply in accordance with IEC 62386-101
- Multi-master capable; several control units can be installed as application controllers in a DALI system
- LED for device localization
- DALI power supply, short-circuit proof
- Saving of basic brightness and switch-on brightness
- Saving of colour temperature limiting values
- Suitable as a rotary control point (input device) for connection to central DALI-2 controls
- Supports four DALI-2 instances for adaptation to central control
- Can be used to control a DALI-2 group
- Cyclical transmission of control commands to DALI operating devices can be activated
Specifications
| Rated voltage | AC 230V AC |
| Mains frequency | 50 / 60 Hz |
| Ambient temperature | -5 ... +45 °C |
| Depth | ca. 24 mm |
DALI |
|
| Rated voltage DALI | DC 16 V (typ.) |
| Number of DALI devices | 16 |
| DALI Device Type | DALI Device Type 8 |
| Colour temperature | 2000 ... 10000 K |
