Conventional solutions by Insta
Conventional products as white label OEM products from Insta are characterised by their simplicity, flexibility and cost-effectiveness. The room temperature controllers, speed controllers and universal dimming inserts enable convenient control and monitoring of various building functions such as lighting, heating, ventilation and air conditioning.
- Proven technology
- Stable and durable solution
- Easy integration into existing switch designs possible
- Reliable automation without complex digital networking
- Improve energy efficiency
- Easy operation
- High investment security

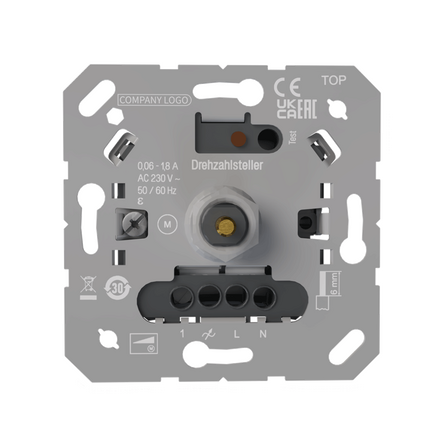

FMK speed controller insert for (fan) motors
Referenznummer: 52530030
The FMK speed controller insert for (fan) motors makes it easy to control the speed of single-phase motors.
Product features
- Device is operating in leading edge phase control
- Number of extensions: Rotary extension 3-wire 10; 2-wire; push-button unlimited
- Device can be operated without neutral conductor
- Switch-on via soft start to maximum speed
- Basic speed can be saved permanently
- Connection of extensions possible
- Electronic short-circuit protection with permanent switch-off after approx. 100 ms
- Electronic over-temperature protection
Specifications
| Rated voltage | AC 230 V~ |
| Mains frequency | 50/60 Hz |
| Standby power | ca. 0.1 ... 0.5 W |
| Ambient temperature | -5°C ... +45°C |
| Depth | 24 mm |
